Windows & Vision Walls
Alum Windows’s frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material. Window products are available in 20, 45, and 60 minute ratings and Vision Walls are available in a 60 minute rating, both for interior and exterior installation.
Alum Windows and Vision Walls are factory finished and
fabricated complete before delivery — reducing installation and glazing to a conventional task for the commercial glazing contractor.
- Clean, sharp lines of narrow extruded aluminum framing
- Large, wire-free glass areas
- Barrier to radiant heat (60 minute only)
- Energy efficient
- Can be integrated with Aluflam’s fire-rated doors
- Multitude of finish options
A popular option for glazing Alum Windows 60 minute windows and vision walls is the Alum Windows butt joined glazing (link), where multiple panels of fire-rated glass can be joined together by means of a unique fire-rated silicone joint. This mullion-less design is available for interior wall systems.
Windows & Vision Walls
Window FW EI20/45/60
Aluflam’s window frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.
Frame Section: 2-1/2 x 3-3/8 in
Frame Weight: 4 lbs/ft

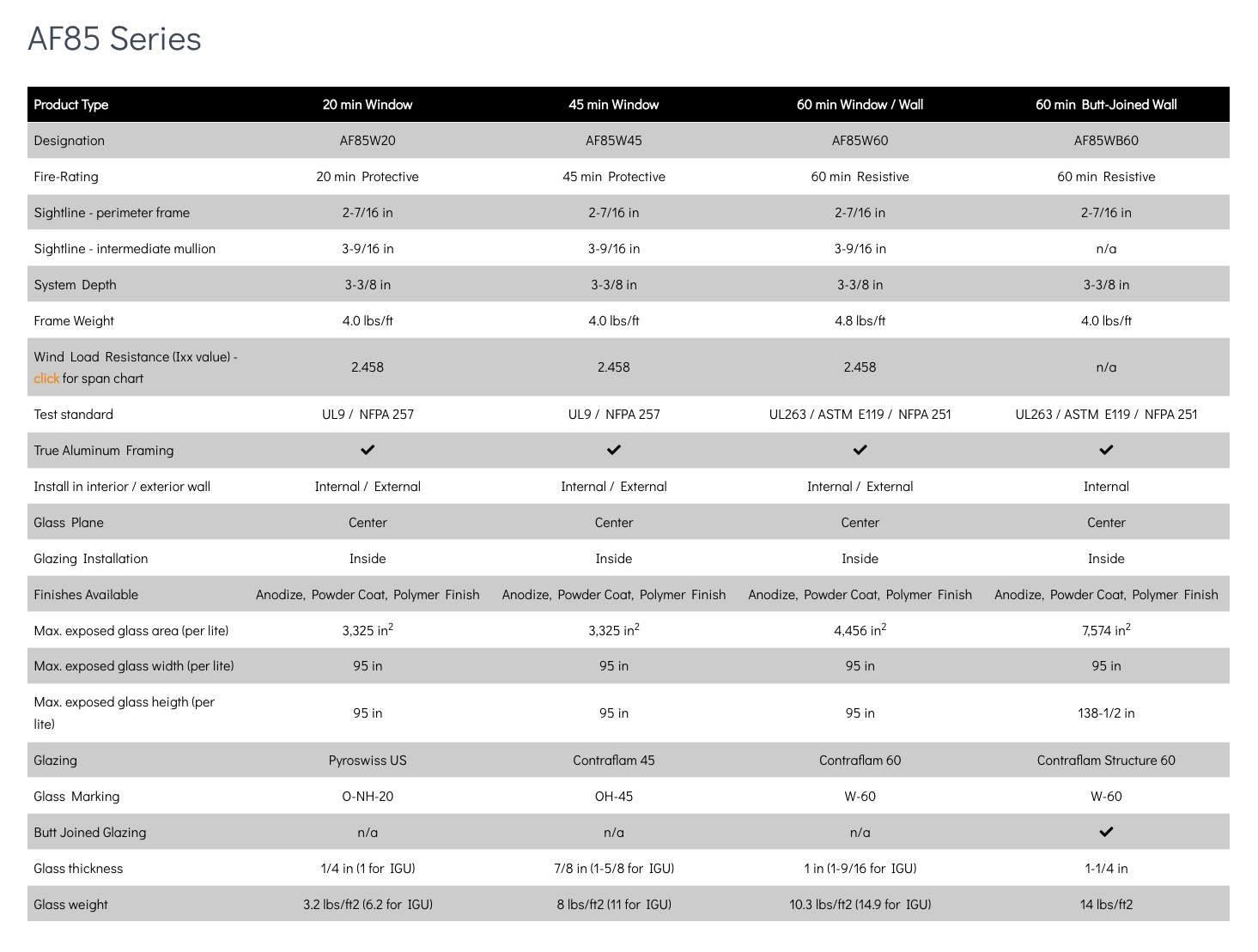

AF85 Series Vision Walls
Vision Wall – VW-EI60
A popular option for glazing Aluflam 60 minute windows and vision walls is the Aluflam butt joined glazing , where multiple panels of fire-rated glass can be joined together by means of a unique fire-rated silicone joint. This mullion-less design is available for interior wall systems.
Frame Section: 2-1/2 x 3-3/8 in
Frame Weight: 4.8 lbs/ft
