60 Minute

Alum Windows’s frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Features and benefits include:

  • Clean, sharp lines of narrow extruded aluminum framing
  • Barrier to radiant heat
  • Energy efficient
  • Multitude of finish options
  • Factory finished and fabricated completed before delivery

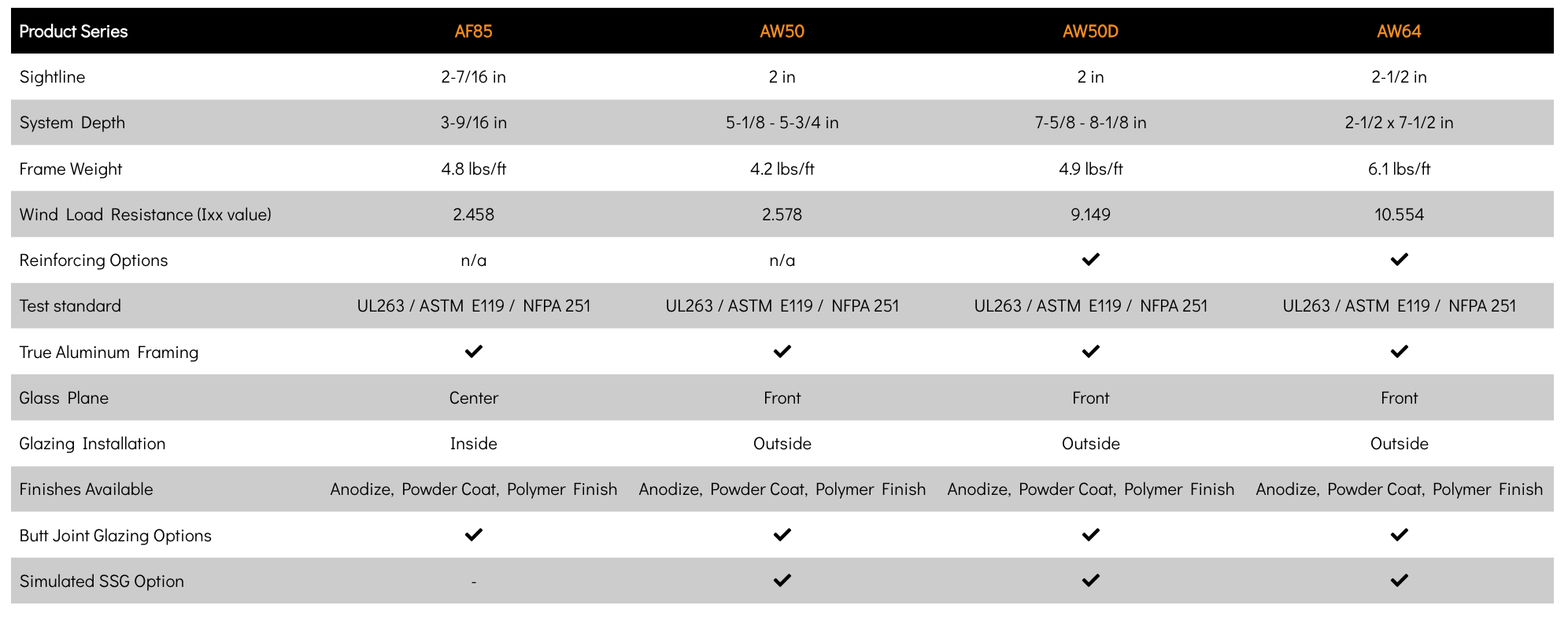

60 Minute Fire Resistive Openings

AF85

AW50

AW50D

AW64

Alum Windows’s fixed storefront window frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2-1/2 x 3-3/8 in

Frame Weight: 4.8 lbs/ft

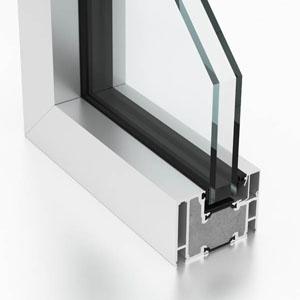

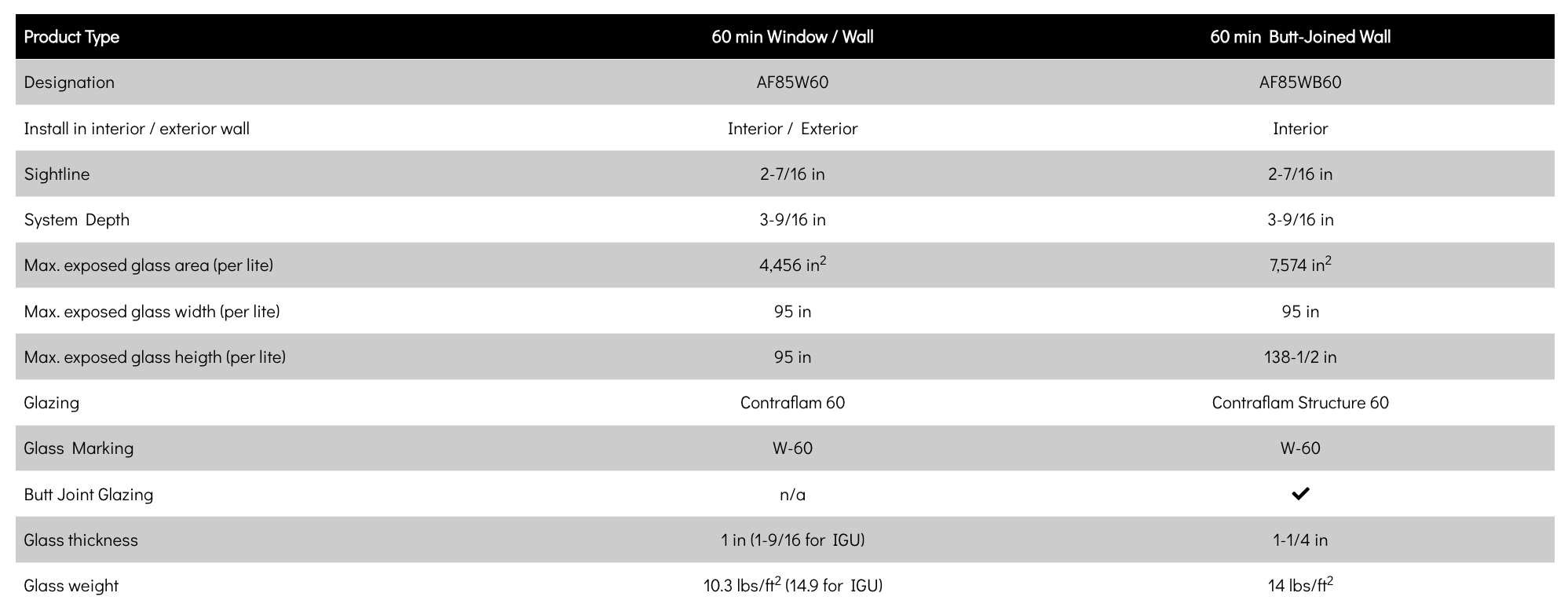

AF85 Series Windows & Vision Wall

Alum Windows’s fixed storefront window frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2-1/2 x 3-3/8 in

Frame Weight: 4.8 lbs/ft

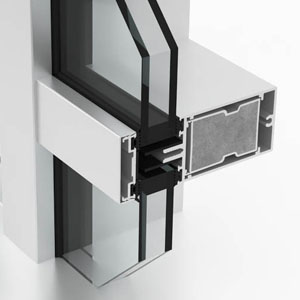

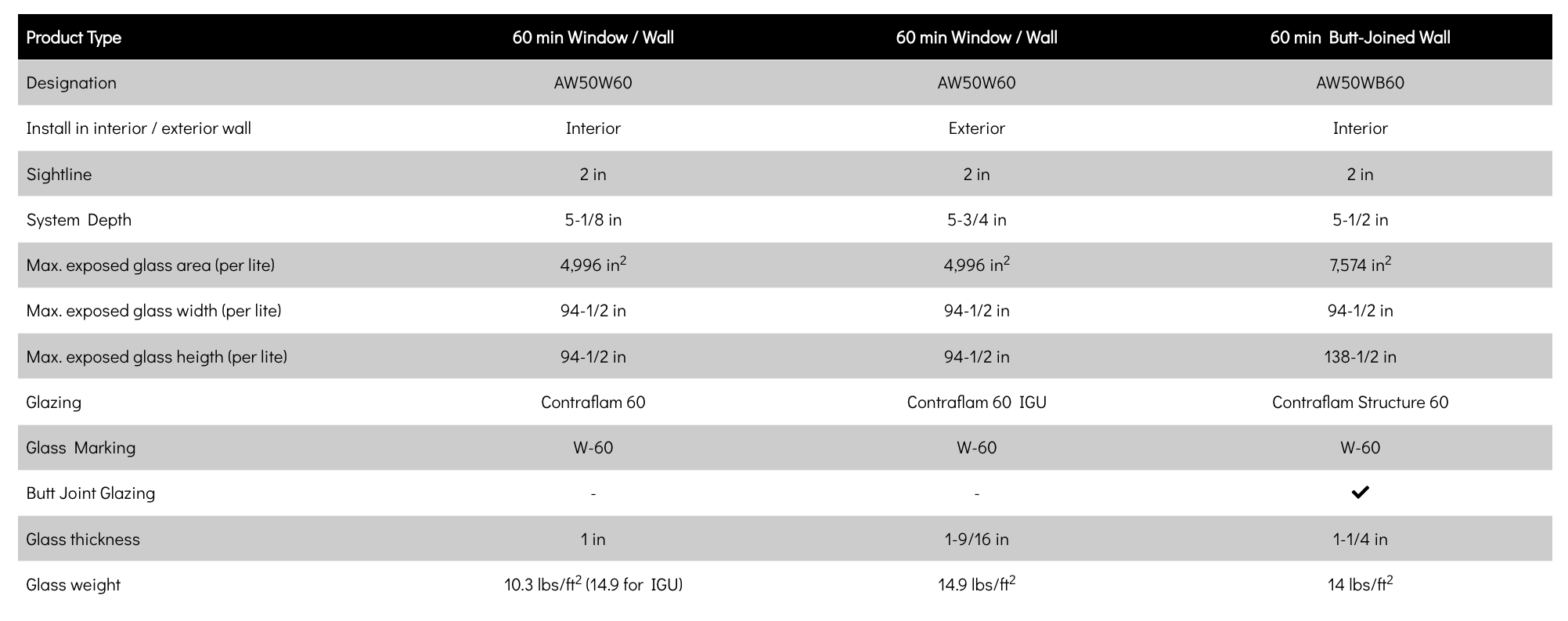

AW50 Series Curtain Wall

Alum Windows’s curtain walls are tested and approved to North American fire standards, and can be integrated with Alum Windows’s fire-rated storefront doors.

Frame Section: 2 x 5-3/16 in

Frame Weight: 4.2 lbs/ft

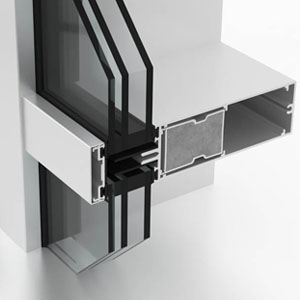

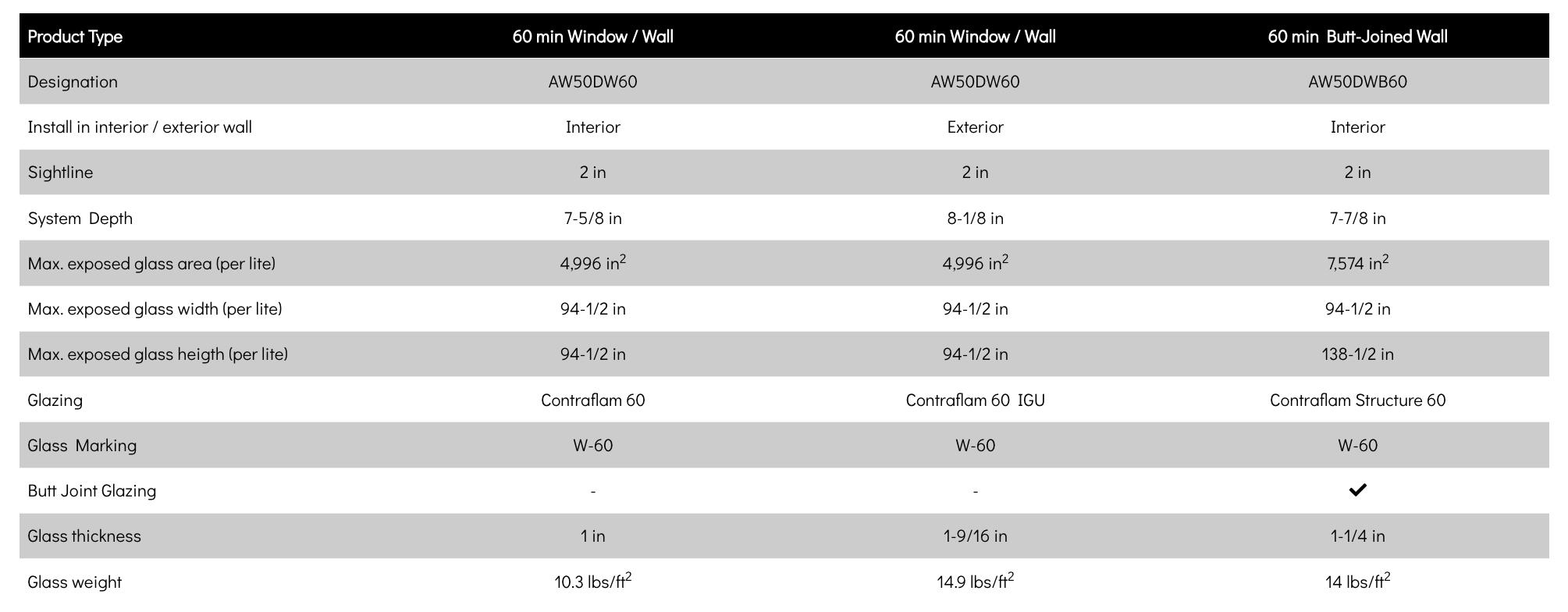

AW50 Deep Series Curtain Wall

Alum Windows’s curtain walls are tested and approved to North American fire standards, and can be integrated with Alum Windows’s fire-rated storefront doors.

Frame Section: 2 x 7-5/8 in

Frame Weight: 4.9 lbs/ft

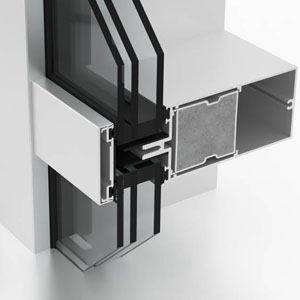

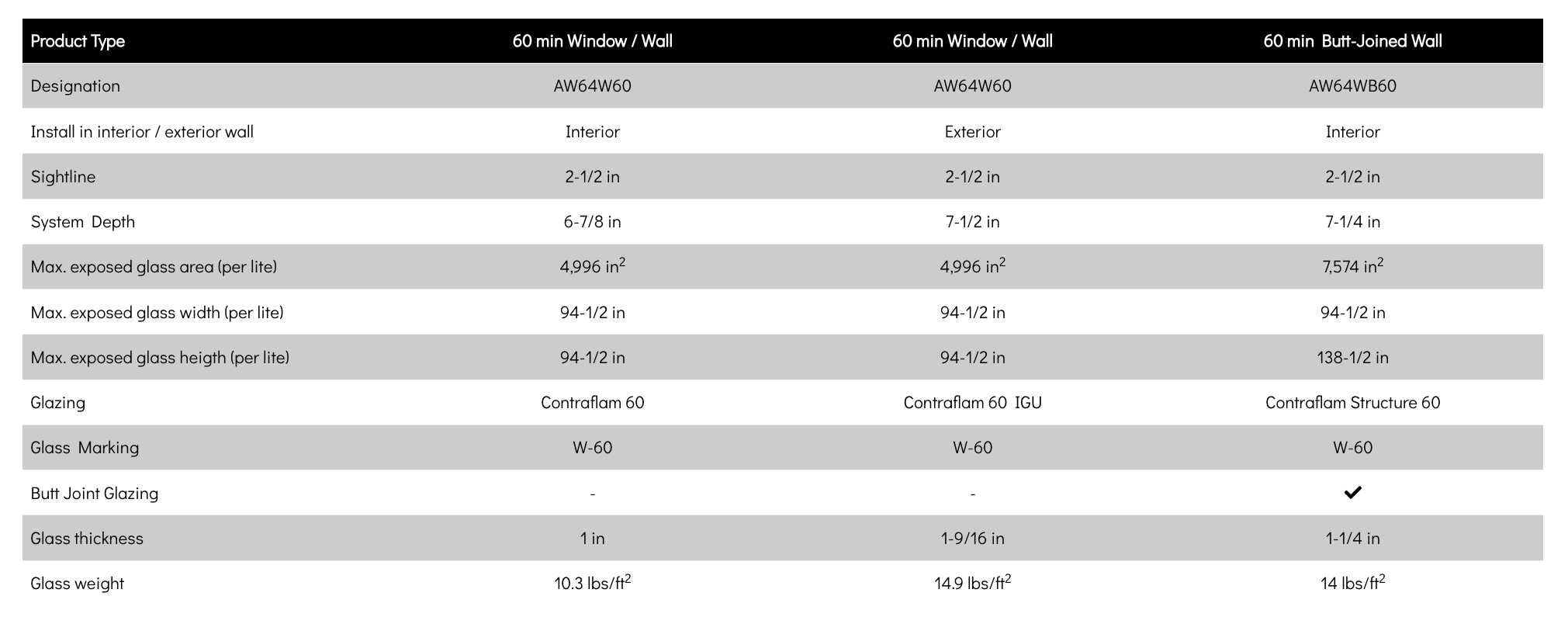

AW64 Series Curtain Wall

Alum Windows’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2-1/2 x 7-1/2 in

Frame Weight: 6.1 lbs/ft
